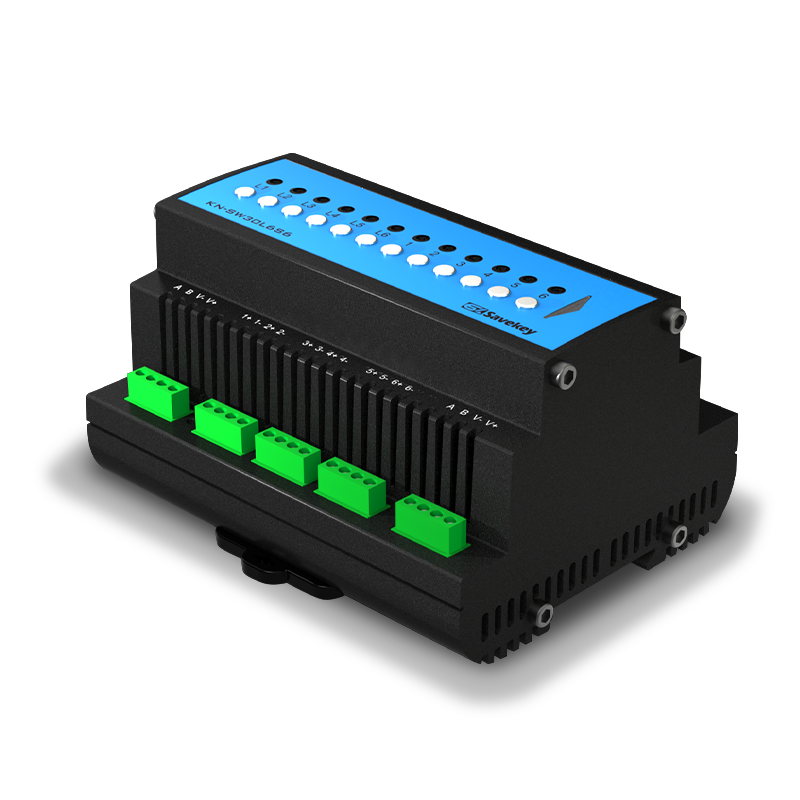

High-Power Switch
Model
High-Power Switch
SW-L6S6-KN-DIN100240NParameters
Power
Zero fire access, AC100 ~ 240V, 50 / 60Hz
control type
1. Support 6-way light control, or 4-way light control and 1-way curtain, or 2-way light control and 2-way curtain. 2. Support 6-way scene control
Load type
With six 16A relays, six dry contact input detection, one 12V power supply output (15W)
Single load parameters
Incandescent lamp ≤ 1600W, LED lamp ≤ 600W, fluorescent lamp ≤ 1200W, electric appliance 2200W
12V external power supply
500mA
Communication mode
Wired RS485 networking
Product power consumption
Less than 2W
Product size
125 L x 95 W x 65 H (mm) installed in distribution box
Product material
Metal shell
